Diffraction project datasets PJ05163D_3di5

  • Method: MAD
  • Resolution: 2.01 Å
  • Space group: C 2 2 21
Download all images (8.1 GB)

PDB website for 3DI5
PDB validation report for 3DI5

doi:10.18430/M33DI5

Project details

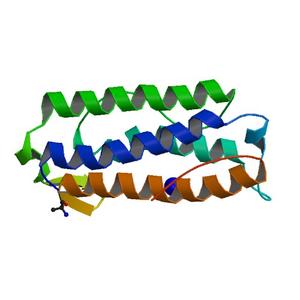

Title Crystal structure of a dinb-like protein (bce_4655) from bacillus cereus atcc 10987 at 2.01 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.27
Unit cell edges [Å] 78.12 x 84.19 x 50.32
Unit cell angles [°] 90.0, 90.0, 90.0

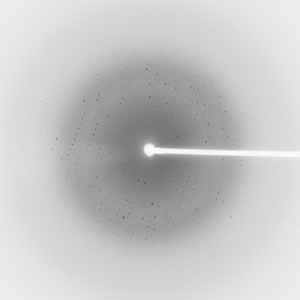

Dataset 82888_1_E1_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 20.0
Wavelength [Å] 0.97916
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

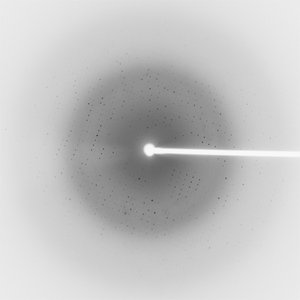

Dataset 82888_1_E2_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 20.0
Wavelength [Å] 0.91837
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

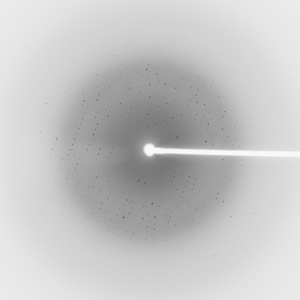

Dataset 82888_2_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 20.0
Wavelength [Å] 0.97860
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
