Diffraction project datasets PJ05013D_2q7s
Project details
| Title |

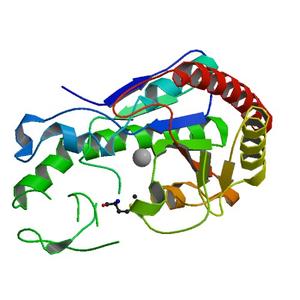

Crystal structure of N-formylglutamate amidohydrolase (YP_297560.1) from Ralstonia eutropha JMP134 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.20 / 0.25 |
| Unit cell edges [Å] |
58.61 x
74.83 x
145.16
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

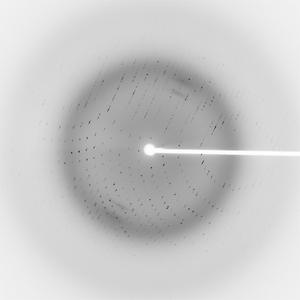

Dataset 49046_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
339.0 |
| Wavelength [Å] |
0.97944 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

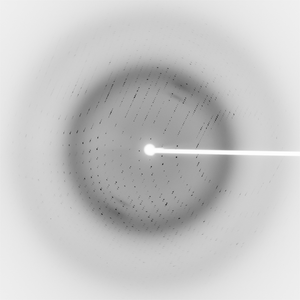

Dataset 49046_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
339.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

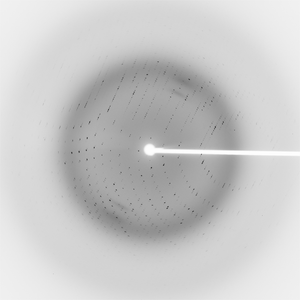

Dataset 49046_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
339.0 |
| Wavelength [Å] |
0.97917 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
