Diffraction project datasets PJ05013D_2q7s

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (4.5 GB)

PDB website for 2Q7S
PDB validation report for 2Q7S

doi:10.18430/M32Q7S

Project details

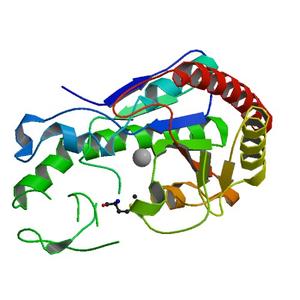

Title Crystal structure of N-formylglutamate amidohydrolase (YP_297560.1) from Ralstonia eutropha JMP134 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 58.61 x 74.83 x 145.16
Unit cell angles [°] 90.0, 90.0, 90.0

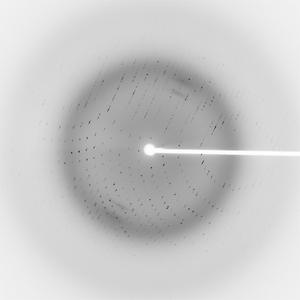

Dataset 49046_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 339.0
Wavelength [Å] 0.97944
Experiment Date 2007-05-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

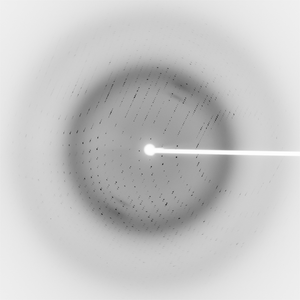

Dataset 49046_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 339.0
Wavelength [Å] 0.91837
Experiment Date 2007-05-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

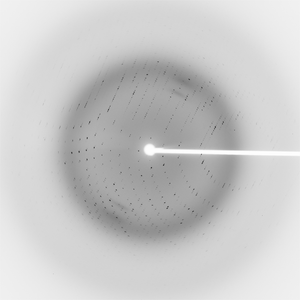

Dataset 49046_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 339.0
Wavelength [Å] 0.97917
Experiment Date 2007-05-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
