Diffraction project datasets PJ04672A_2qe6
Project details
| Title |

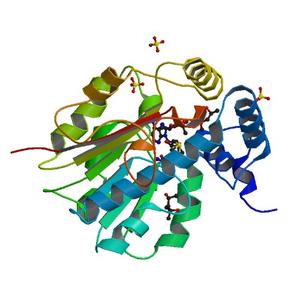

CRYSTAL STRUCTURE OF A PUTATIVE METHYLTRANSFERASE (TFU_2867) FROM THERMOBIFIDA FUSCA YX AT 1.95 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.21 |
| Unit cell edges [Å] |
102.63 x
76.02 x
81.32
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

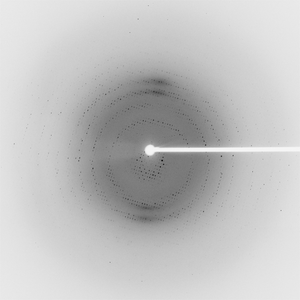

Dataset 51619_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
275.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
119.0 |
| Wavelength [Å] |
0.97917 |
| Experiment Date |
2007-06-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

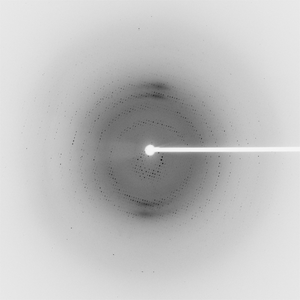

Dataset 51619_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
275.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
119.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-06-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

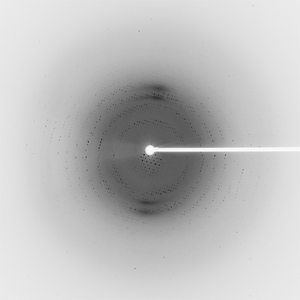

Dataset 51619_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
119.86 |
| Wavelength [Å] |
0.97894 |
| Experiment Date |
2007-06-04 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

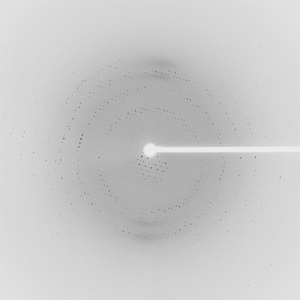

Dataset 51619_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
119.86 |
| Wavelength [Å] |
0.97894 |
| Experiment Date |
2007-06-04 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
