Diffraction project datasets PJ04222C_2q9r

  • Method: MAD
  • Resolution: 1.91 Å
  • Space group: C 2 2 21
Download all images (4.1 GB)

PDB website for 2Q9R
PDB validation report for 2Q9R

doi:10.18430/M32Q9R

Project details

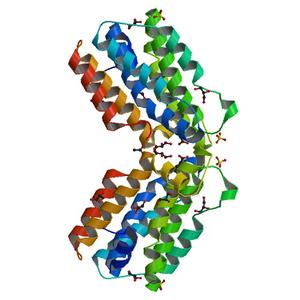

Title CRYSTAL STRUCTURE OF a DUF416 family protein (SBAL_3149) FROM SHEWANELLA BALTICA OS155 AT 1.91 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 68.57 x 77.14 x 87.17
Unit cell angles [°] 90.0, 90.0, 90.0

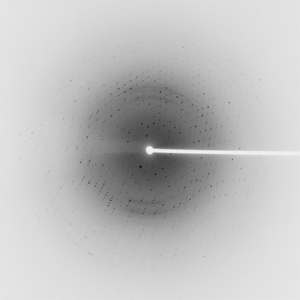

Dataset 53055_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.97922
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

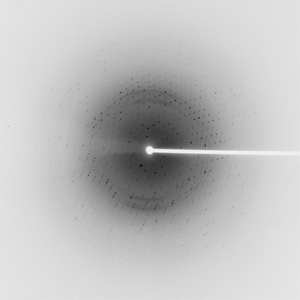

Dataset 53055_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 53055_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.97905
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
