Diffraction project datasets PJ04169H_3n6x

  • Method: MAD
  • Resolution: 2.35 Å
  • Space group: P 41 21 2
Download all images (3.7 GB)

PDB website for 3N6X
PDB validation report for 3N6X

doi:10.18430/M33N6X

Project details

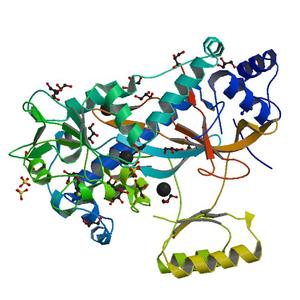

Title Crystal structure of a Putative glutathionylspermidine synthase (Mfla_0391) from METHYLOBACILLUS FLAGELLATUS KT at 2.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 97.34 x 97.34 x 155.49
Unit cell angles [°] 90.0, 90.0, 90.0

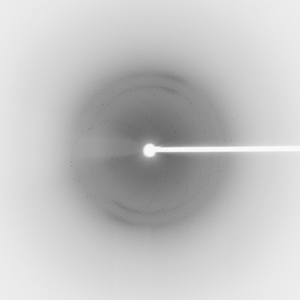

Dataset 146826_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97927
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

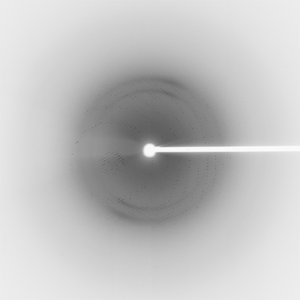

Dataset 146826_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.91837
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

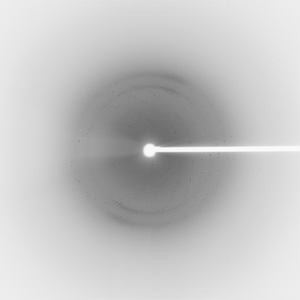

Dataset 146826_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97911
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
