Diffraction project datasets PH10071A_2pg4

  • Method: MAD
  • Resolution: 2.21 Å
  • Space group: P 4 21 2
Download all images (3.8 GB)

PDB website for 2PG4
PDB validation report for 2PG4

doi:10.18430/M32PG4

Project details

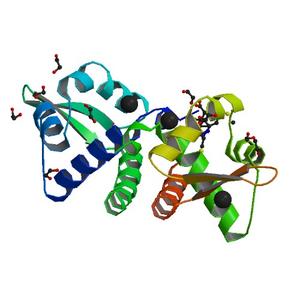

Title Crystal structure of a putative dna binding protein (ape_0880a) from aeropyrum pernix k1 at 2.21 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.26
Unit cell edges [Å] 109.84 x 109.84 x 36.76
Unit cell angles [°] 90.0, 90.0, 90.0

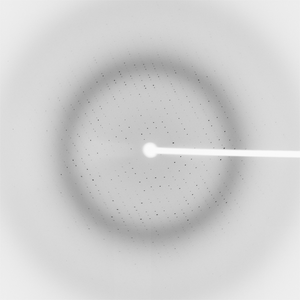

Dataset 44074_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 279.0
Wavelength [Å] 0.97941
Experiment Date 2007-02-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

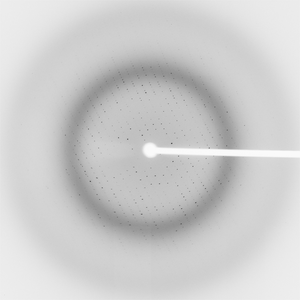

Dataset 44074_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 279.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

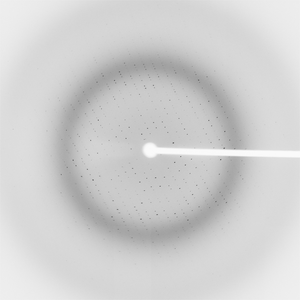

Dataset 44074_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 279.0
Wavelength [Å] 0.97929
Experiment Date 2007-02-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
