Diffraction project datasets PH10070D_2pv4

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 21 21 21
Download all images (3.9 GB)

PDB website for 2PV4
PDB validation report for 2PV4

doi:10.18430/M32PV4

Project details

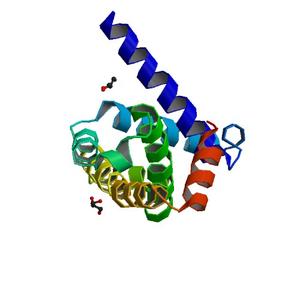

Title CRYSTAL STRUCTURE OF AN UNCHARACTERIZED PROTEIN FROM DUF3069 FAMILY (SAMA_2622) FROM SHEWANELLA AMAZONENSIS SB2B AT 1.95 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 35.96 x 47.28 x 98.69
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 46904_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.97936
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

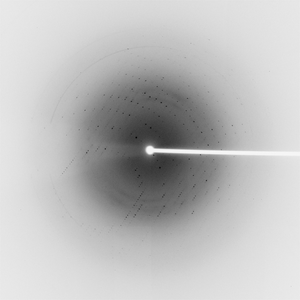

Dataset 46904_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

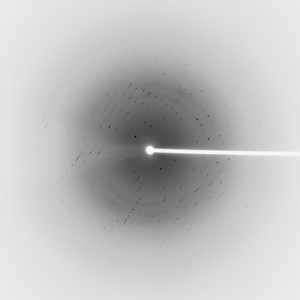

Dataset 46904_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.97922
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
