Diffraction project datasets PG9933A_2qs7

  • Method: MAD
  • Resolution: 2.09 Å
  • Space group: H 3 2
Download all images (3.5 GB)

PDB website for 2QS7

doi:10.18430/M32QS7

Project details

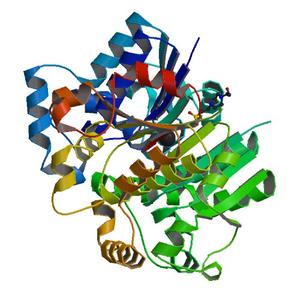

Title CRYSTAL STRUCTURE OF a putative oxidoreductase of the DsrE/DsrF-like family (SSO1126) FROM SULFOLOBUS SOLFATARICUS P2 AT 2.09 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 112.36 x 112.36 x 293.28
Unit cell angles [°] 90.0, 90.0, 120.0

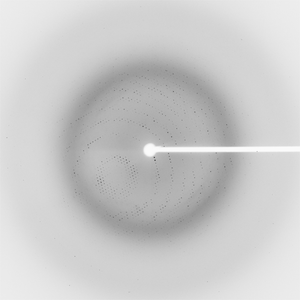

Dataset 54510_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 54.0
Wavelength [Å] 0.97937
Experiment Date 2007-06-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

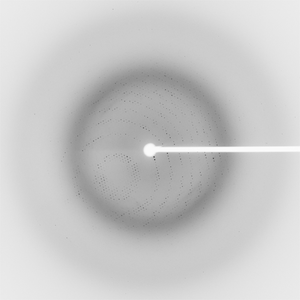

Dataset 54510_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 54.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
