Diffraction project datasets PG9920A_2qjw

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 1 21 1
Download all images (12.5 GB)

PDB website for 2QJW
PDB validation report for 2QJW

doi:10.18430/M32QJW

Project details

Title CRYSTAL STRUCTURE OF A PUTATIVE HYDROLASE OF THE ALPHA/BETA SUPERFAMILY (XCC1541) FROM XANTHOMONAS CAMPESTRIS PV. CAMPESTRIS AT 1.35 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 71.80 x 60.64 x 74.72
Unit cell angles [°] 90.0, 94.6, 90.0

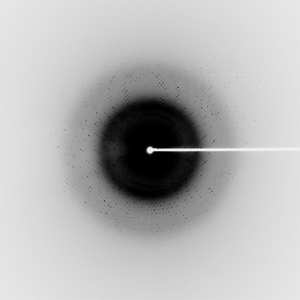

Dataset 53256_1_E1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 357.0
Wavelength [Å] 0.97920
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

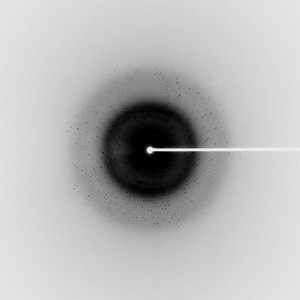

Dataset 53256_1_E2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 357.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

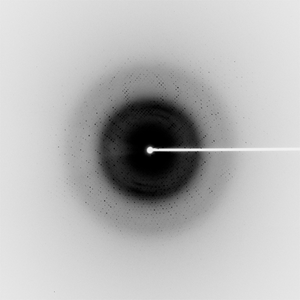

Dataset 53256_2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 357.0
Wavelength [Å] 0.97886
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
