Diffraction project datasets PG9895A_2rdc

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: C 2 2 21
Download all images (1.7 GB)

PDB website for 2RDC
PDB validation report for 2RDC

doi:10.18430/M32RDC

Project details

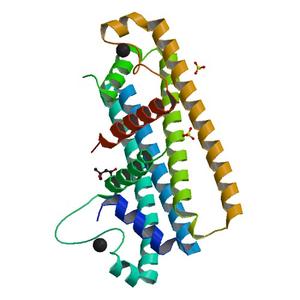

Title CRYSTAL STRUCTURE OF A PUTATIVE LIPID BINDING PROTEIN (GSU0061) FROM GEOBACTER SULFURREDUCENS PCA AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 49.19 x 116.25 x 97.31
Unit cell angles [°] 90.0, 90.0, 90.0

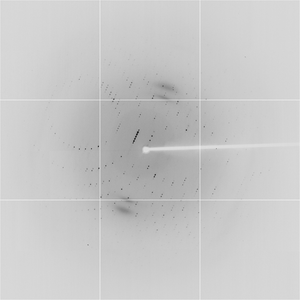

Dataset 60086_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 256.0
Wavelength [Å] 0.97970
Experiment Date 2007-08-31
Equipment 8.2.2 at ALS (Advanced Light Source)

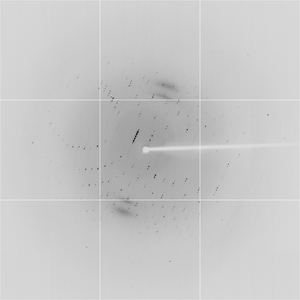

Dataset 60086_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 256.0
Wavelength [Å] 1.00000
Experiment Date 2007-08-31
Equipment 8.2.2 at ALS (Advanced Light Source)

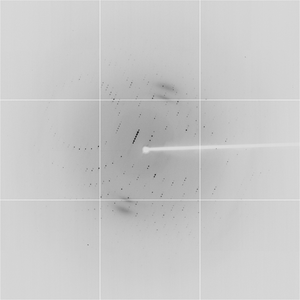

Dataset 60086_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 256.0
Wavelength [Å] 0.97960
Experiment Date 2007-08-31
Equipment 8.2.2 at ALS (Advanced Light Source)
