Diffraction project datasets PG9822C_2q3l
- Method: MAD
- Resolution: 2.25 Å
- Space group: C 2 2 21
PDB website for 2Q3L
doi:10.18430/M32Q3L
Project details

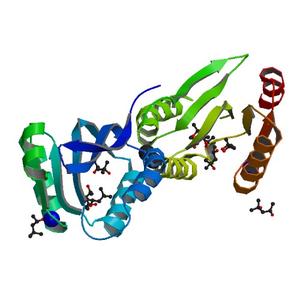

| Title | CRYSTAL STRUCTURE OF AN UNCHARACTERIZED PROTEIN FROM DUF3478 FAMILY WITH A SPOIIAA-LIKE FOLD (SHEW_3102) FROM SHEWANELLA LOIHICA PV-4 AT 2.25 A RESOLUTION |
| Authors | Kumar, A., Lomize, A., Jin, K.K., Carlton, D., Miller, M.D., Jaroszewski, L., Abdubek, P., Astakhova, T., Axelrod, H.L., Chiu, H.J., Clayton, T., Das, D., Deller, M.C., Duan, L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Marciano, D., McMullan, D., Morse, A.T., Nigoghossian, E., Okach, L., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 40.39 x 113.96 x 130.69 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

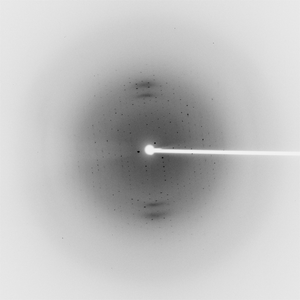

Dataset 51451_1_E1_###.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 45.0 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2007-05-14 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

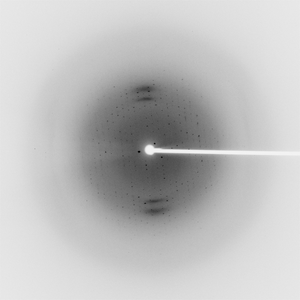

Dataset 51451_1_E2_###.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 45.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-05-14 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 51451_2_###.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 45.0 |
| Wavelength [Å] | 0.97895 |
| Experiment Date | 2007-05-14 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
