Diffraction project datasets PE00389E_2i9w
Project details
| Title |

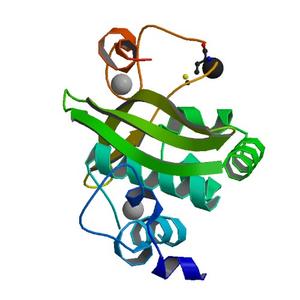

Crystal structure of a sec-c motif containing protein (psyc_2064) from psychrobacter arcticus at 1.75 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.24 |
| Unit cell edges [Å] |
41.49 x
54.69 x
83.88
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

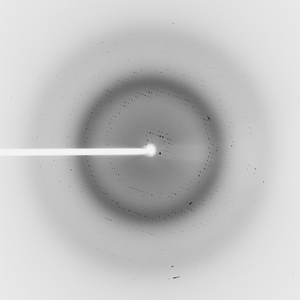

Dataset 31029_1_E1.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
63.0 |
| Wavelength [Å] |
0.97942 |
| Experiment Date |
2006-08-11 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

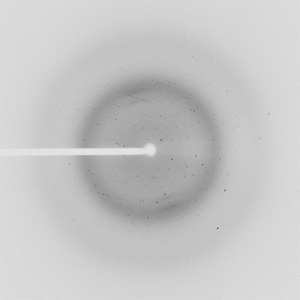

Dataset 31029_1_E2.#### details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
63.0 |
| Wavelength [Å] |
0.94929 |
| Experiment Date |
2006-08-11 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

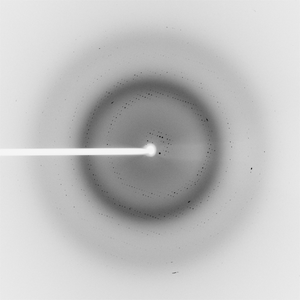

Dataset 31029_1_E2.#### details
| Number of frames |
59 (32 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
94.0 |
| Wavelength [Å] |
0.94929 |
| Experiment Date |
2006-08-11 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

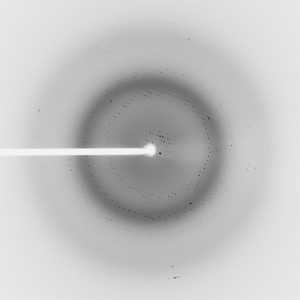

Dataset 31029_2.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
63.0 |
| Wavelength [Å] |
0.97928 |
| Experiment Date |
2006-08-11 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
