Diffraction project datasets PE00293D_2p10

  • Method: MAD
  • Resolution: 2.15 Å
  • Space group: H 3
Download all images (1.5 GB)

PDB website for 2P10
PDB validation report for 2P10

doi:10.18430/M32P10

Project details

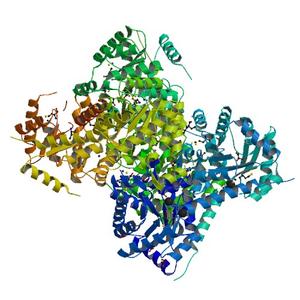

Title CRYSTAL STRUCTURE OF A PUTATIVE PHOSPHONOPYRUVATE HYDROLASE (MLL9387) FROM MESORHIZOBIUM LOTI MAFF303099 AT 2.15 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 180.27 x 180.27 x 185.51
Unit cell angles [°] 90.0, 90.0, 120.0

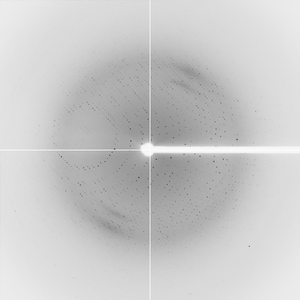

Dataset 38434_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 236.0
Wavelength [Å] 0.97935
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

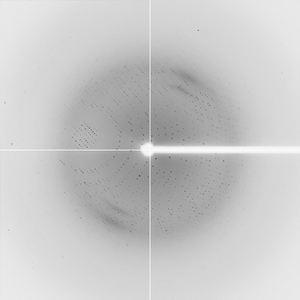

Dataset 38434_1_E2_###.img details

Number of frames 103 (1 - 103)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 236.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

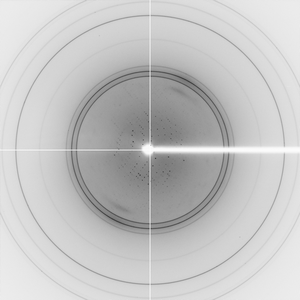

Dataset 38434_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 180.0
Oscillation width [°] 1.00
Phi [°] 236.0
Wavelength [Å] 0.97892
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
