Diffraction project datasets PE00092D_2peb

  • Method: MAD
  • Resolution: 1.46 Å
  • Space group: P 1 21 1
Download all images (6.3 GB)

PDB website for 2PEB
PDB validation report for 2PEB

doi:10.18430/M32PEB

Project details

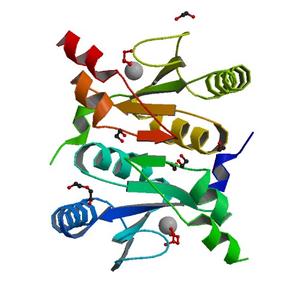

Title Crystal structure of a putative dioxygenase (npun_f1925) from nostoc punctiforme pcc 73102 at 1.46 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 44.56 x 57.04 x 46.68
Unit cell angles [°] 90.0, 104.8, 90.0

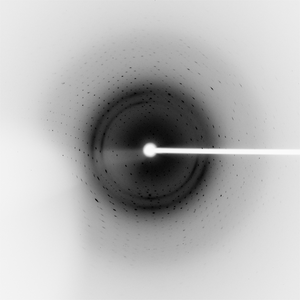

Dataset 46114_1_E1_###.mccd details

Number of frames 135 (1 - 135)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 135.0
Wavelength [Å] 0.97944
Experiment Date 2007-03-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

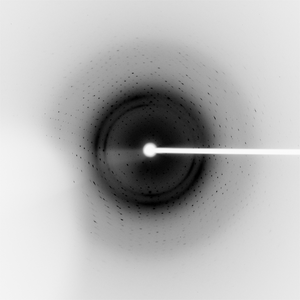

Dataset 46114_1_E2_###.mccd details

Number of frames 135 (1 - 135)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 135.0
Wavelength [Å] 0.91837
Experiment Date 2007-03-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

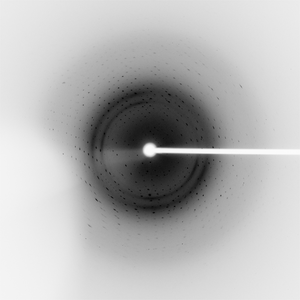

Dataset 46114_2_###.mccd details

Number of frames 135 (1 - 135)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 135.0
Wavelength [Å] 0.97913
Experiment Date 2007-03-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
