Diffraction project datasets PE00092A_2nyh

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: C 2 2 21
Download all images (1.8 GB)

PDB website for 2NYH
PDB validation report for 2NYH

doi:10.18430/M32NYH

Project details

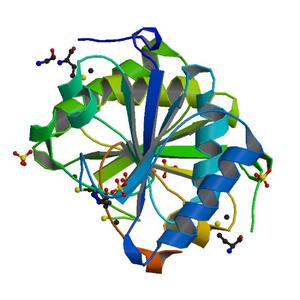

Title Crystal structure of putative dioxygenase (YP_555069.1) from Burkholderia Xenovorans LB400 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 70.97 x 88.30 x 88.57
Unit cell angles [°] 90.0, 90.0, 90.0

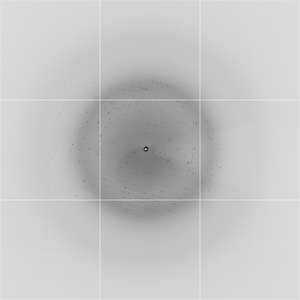

Dataset 32726_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 0.97950
Experiment Date 2006-09-13
Equipment 8.2.2 at ALS (Advanced Light Source)

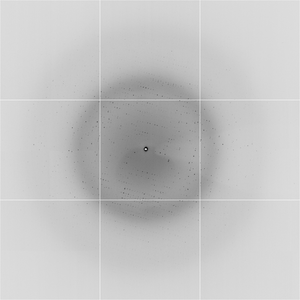

Dataset 32726_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 1.00000
Experiment Date 2006-09-13
Equipment 8.2.2 at ALS (Advanced Light Source)

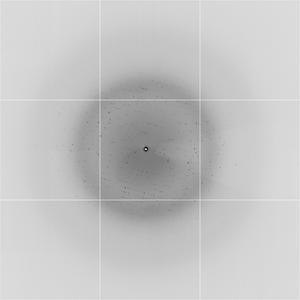

Dataset 32726_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 0.97920
Experiment Date 2006-09-13
Equipment 8.2.2 at ALS (Advanced Light Source)
