Diffraction project datasets PE00044A_2q22
Project details
| Title |
Crystal structure of uncharacterized protein (YP_323524.1) from Anabaena variabilis ATCC 29413 at 2.11 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.19 / 0.22 |
| Unit cell edges [Å] |
103.37 x
103.37 x
42.09
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

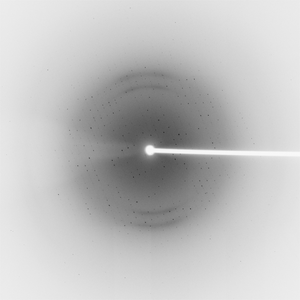

Dataset 46502_1_E1_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
227.0 |
| Wavelength [Å] |
0.97939 |
| Experiment Date |
2007-02-04 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

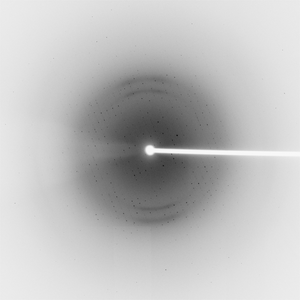

Dataset 46502_1_E2_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
227.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-02-04 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
