Diffraction project datasets PE00037D_2it9

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (1.7 GB)

PDB website for 2IT9

doi:10.18430/M32IT9

Project details

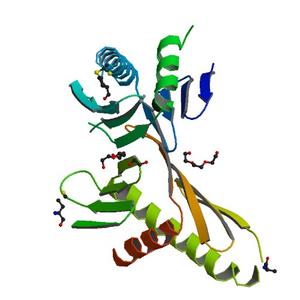

Title Crystal structure of a protein with unknown function from DUF155 family (YP_292156.1) from Prochlorococcus sp. NATL2A at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 59.72 x 81.02 x 124.35
Unit cell angles [°] 90.0, 90.0, 90.0

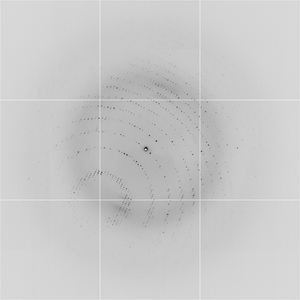

Dataset 31277_1_E1_###.img details

Number of frames 95 (1 - 95)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 12.0
Wavelength [Å] 0.98000
Experiment Date 2006-08-30
Equipment 8.2.2 at ALS (Advanced Light Source)

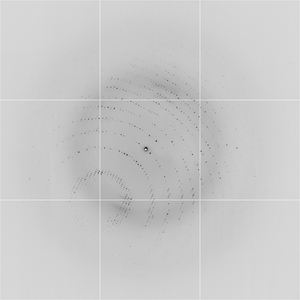

Dataset 31277_1_E2_###.img details

Number of frames 95 (1 - 95)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 12.0
Wavelength [Å] 0.97400
Experiment Date 2006-08-30
Equipment 8.2.2 at ALS (Advanced Light Source)

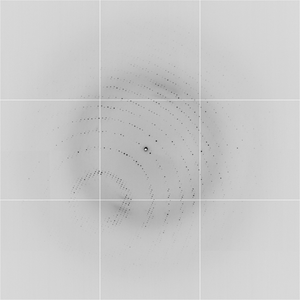

Dataset 31277_1_E3_###.img details

Number of frames 95 (1 - 95)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 12.0
Wavelength [Å] 0.97990
Experiment Date 2006-08-30
Equipment 8.2.2 at ALS (Advanced Light Source)
