Diffraction project datasets PE00035E_3d7q
- Method: MAD
- Resolution: 2.3 Å
- Space group: P 43 21 2
PDB website for 3D7Q
PDB validation report for 3D7Q
doi:10.18430/M33D7Q
Project details
| Title | Crystal structure of a xisi-like protein (npun_ar114) from nostoc punctiforme pcc 73102 at 2.30 A resolution |
| Authors | Hwang, W.C., Golden, J.W., Pascual, J., Xu, D., Cheltsov, A., Godzik, A. |
| Bioentity | None |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 79.85 x 79.85 x 74.26 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

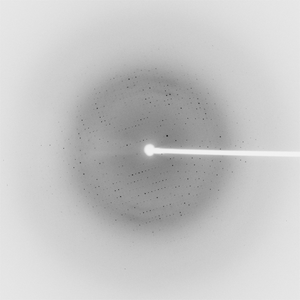

Dataset 83476_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 325.0 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2008-04-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

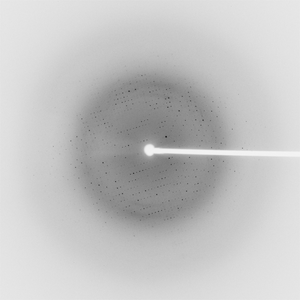

Dataset 83476_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 325.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2008-04-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

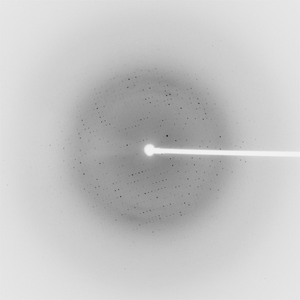

Dataset 83476_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 325.0 |
| Wavelength [Å] | 0.97854 |
| Experiment Date | 2008-04-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
