Diffraction project datasets PE00035C_2inb
- Method: MAD
- Resolution: 1.6 Å
- Space group: P 31 2 1
PDB website for 2INB
PDB validation report for 2INB
doi:10.18430/M32INB
Project details

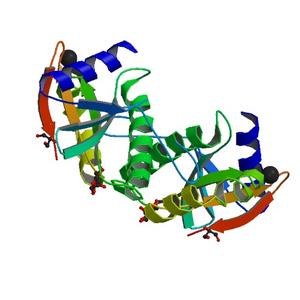

| Title | Crystal structure of an XisH family protein (ZP_00107633.1) from Nostoc punctiforme PCC 73102 at 1.60 A resolution |
| Authors | Hwang, W.C., Golden, J.W., Pascual, J., Xu, D., Cheltsov, A., Godzik, A. |
| Bioentity | None |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 59.55 x 59.55 x 71.56 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

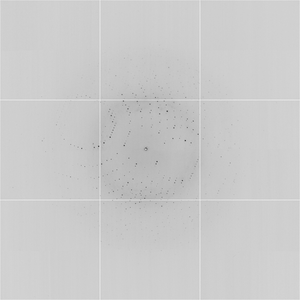

Dataset 31827_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 198.0 |
| Wavelength [Å] | 0.97990 |
| Experiment Date | 2006-08-30 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

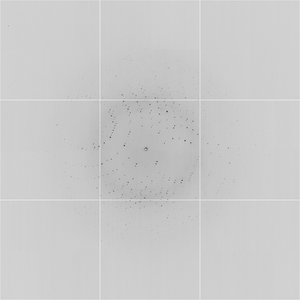

Dataset 31827_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 198.0 |
| Wavelength [Å] | 0.97400 |
| Experiment Date | 2006-08-30 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

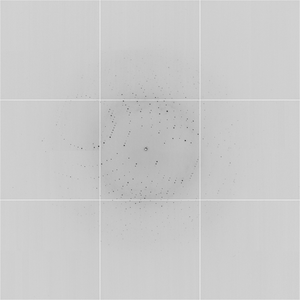

Dataset 31827_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 198.0 |
| Wavelength [Å] | 0.97980 |
| Experiment Date | 2006-08-30 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
