Diffraction project datasets PE00003C_2hyt

  • Method: MAD
  • Resolution: 1.64 Å
  • Space group: P 3 2 1
Download all images (3.5 GB)

PDB website for 2HYT
PDB validation report for 2HYT

doi:10.18430/M32HYT

Project details

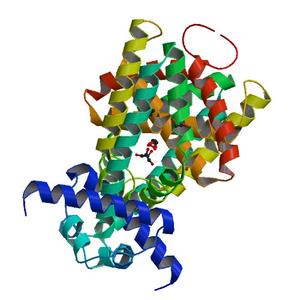

Title CRYSTAL STRUCTURE OF A TETR-FAMILY TRANSCRIPTIONAL REGULATOR (ECA1819) FROM PECTOBACTERIUM ATROSEPTICUM AT 1.64 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 82.86 x 82.86 x 56.05
Unit cell angles [°] 90.0, 90.0, 120.0

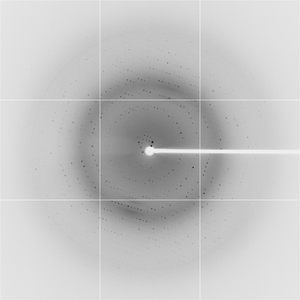

Dataset 29762_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 69.0
Wavelength [Å] 0.97920
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

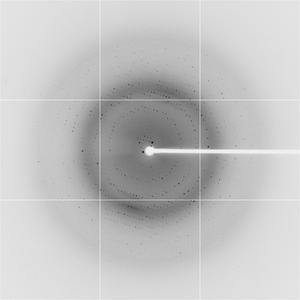

Dataset 29762_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 69.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

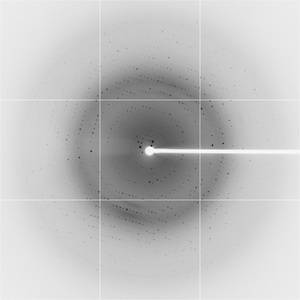

Dataset 29762_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 69.0
Wavelength [Å] 1.03317
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

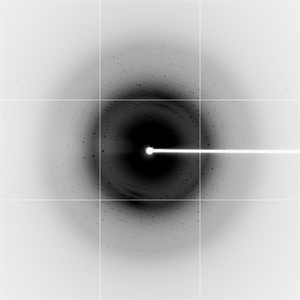

Dataset 29762_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 69.0
Wavelength [Å] 1.03317
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
