Diffraction project datasets PE00002C_3ccg
Project details
| Title |

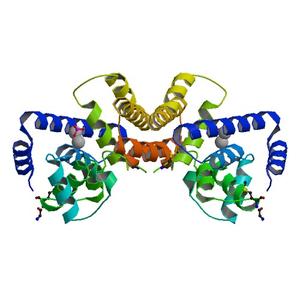

Crystal structure of predicted HD superfamily hydrolase involved in NAD metabolism (NP_347894.1) from Clostridium acetobutylicum at 1.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
90.54 x
36.32 x
72.60
|
| Unit cell angles [°] |
90.0,
125.5,
90.0
|

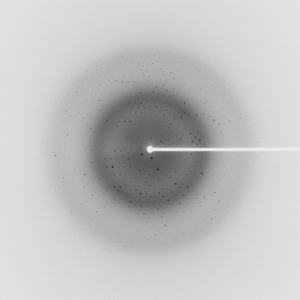

Dataset 74661_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
272.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2008-02-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

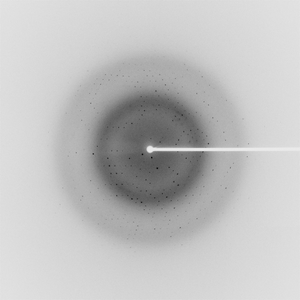

Dataset 74661_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
272.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-02-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

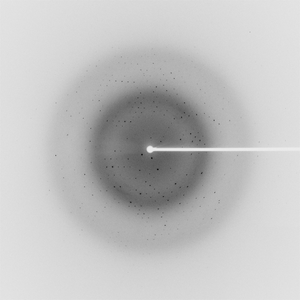

Dataset 74661_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
272.0 |
| Wavelength [Å] |
0.97874 |
| Experiment Date |
2008-02-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
