Diffraction project datasets PE00002B_2o08
Project details
| Title |

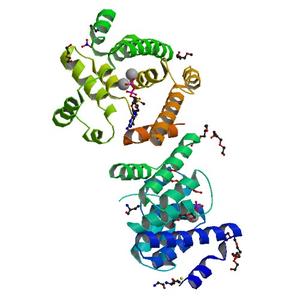

CRYSTAL STRUCTURE OF A PUTATIVE HD SUPERFAMILY HYDROLASE (BH1327) FROM BACILLUS HALODURANS AT 1.90 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
86.83 x
166.51 x
73.41
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

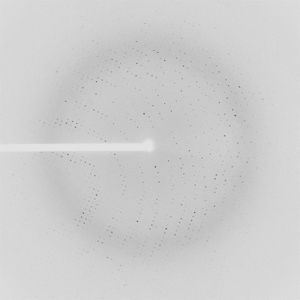

Dataset 34621_1_E1.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
7.0 |
| Wavelength [Å] |
0.97942 |
| Experiment Date |
2006-10-20 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

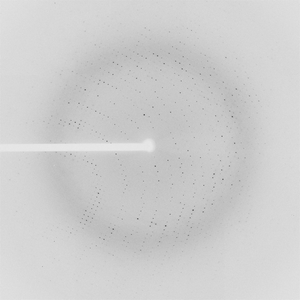

Dataset 34621_1_E2.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
7.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2006-10-20 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

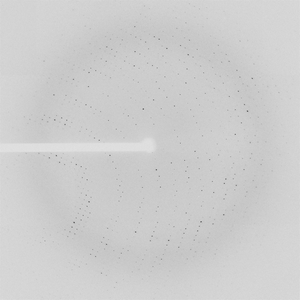

Dataset 34621_2.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
7.0 |
| Wavelength [Å] |
0.97921 |
| Experiment Date |
2006-10-20 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
