Diffraction project datasets PD01933E_2ppv

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: C 2 2 21
Download all images (7.2 GB)

PDB website for 2PPV
PDB validation report for 2PPV

doi:10.18430/M32PPV

Project details

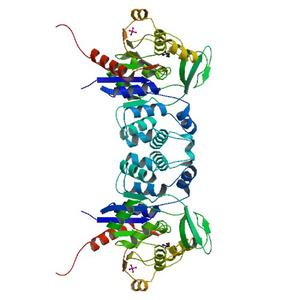

Title CRYSTAL STRUCTURE OF a protein belonging to the UPF0052 (SE_0549) FROM STAPHYLOCOCCUS EPIDERMIDIS ATCC 12228 AT 2.00 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 136.67 x 136.81 x 55.96
Unit cell angles [°] 90.0, 90.0, 90.0

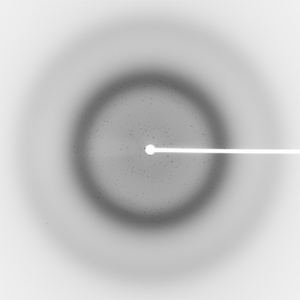

Dataset 44156_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 25.0
Wavelength [Å] 0.97931
Experiment Date 2007-03-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

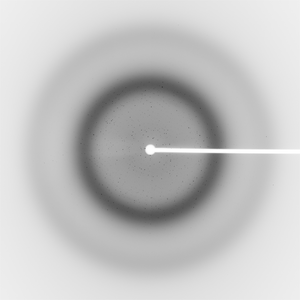

Dataset 44156_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 25.0
Wavelength [Å] 0.91837
Experiment Date 2007-03-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

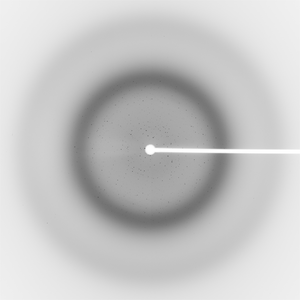

Dataset 44156_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 25.0
Wavelength [Å] 0.97902
Experiment Date 2007-03-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
