Diffraction project datasets PD01933D_2q7x

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (13.2 GB)

PDB website for 2Q7X
PDB validation report for 2Q7X

doi:10.18430/M32Q7X

Project details

Title Crystal structure of a putative phospho transferase (sp_1565) from streptococcus pneumoniae tigr4 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 64.52 x 69.35 x 169.42
Unit cell angles [°] 90.0, 90.0, 90.0

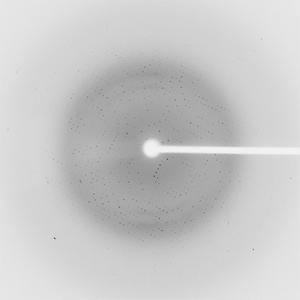

Dataset 48870_1_E1_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 240.0
Wavelength [Å] 0.97917
Experiment Date 2007-04-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

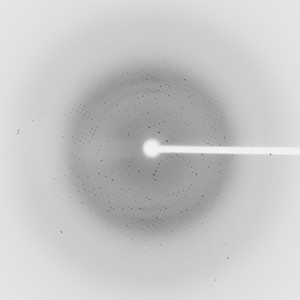

Dataset 48870_1_E2_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 240.0
Wavelength [Å] 0.91837
Experiment Date 2007-04-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

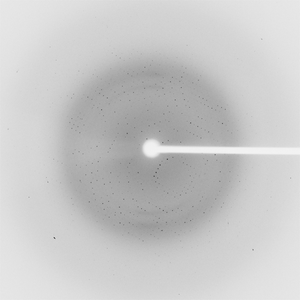

Dataset 48870_2_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 240.0
Wavelength [Å] 0.97891
Experiment Date 2007-04-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
