Diffraction project datasets PD01933B_2o2z

  • Method: SAD
  • Resolution: 2.6 Å
  • Space group: P 21 21 21
Download all images (2.1 GB)

PDB website for 2O2Z

doi:10.18430/M32O2Z

Project details

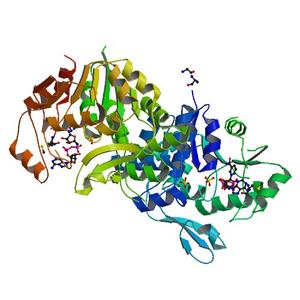

Title Crystal structure of a protein member of the upf0052 family (bh3568) from bacillus halodurans at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 51.43 x 143.64 x 233.68
Unit cell angles [°] 90.0, 90.0, 90.0

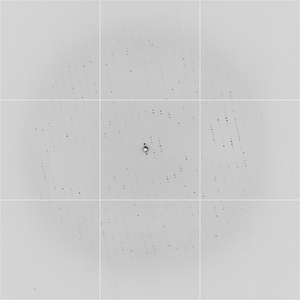

Dataset 32436_101_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 208.0
Wavelength [Å] 0.97970
Experiment Date 2006-08-31
Equipment 8.2.2 at ALS (Advanced Light Source)

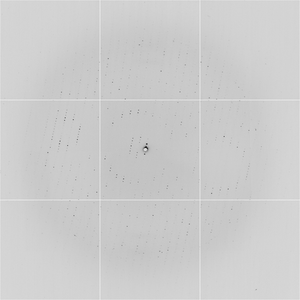

Dataset 32436_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 28.0
Wavelength [Å] 0.97970
Experiment Date 2006-08-31
Equipment 8.2.2 at ALS (Advanced Light Source)
