Diffraction project datasets PD01865F_2olt
Project details
| Title |

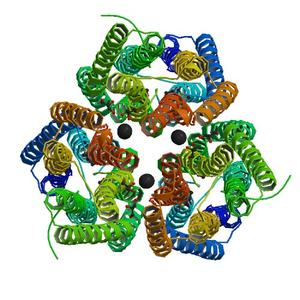

Crystal structure of a phou-like protein (so_3770) from shewanella oneidensis mr-1 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.24 |
| Unit cell edges [Å] |
99.53 x
99.53 x
395.92
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

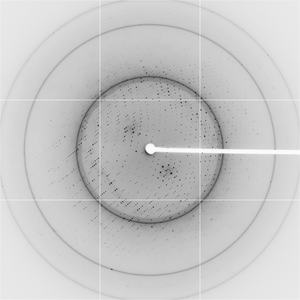

Dataset 24776_1_E1_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.97932 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

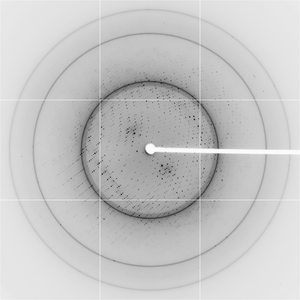

Dataset 24776_1_E2_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

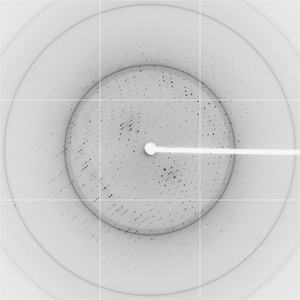

Dataset 24776_2_E1_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.97932 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

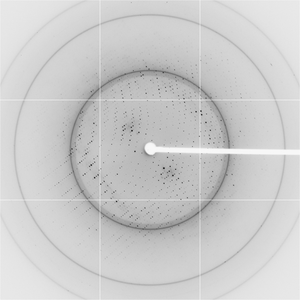

Dataset 24776_2_E2_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 24776_3_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.97904 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

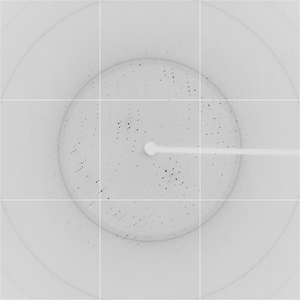

Dataset 24776_4_E1_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.97932 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

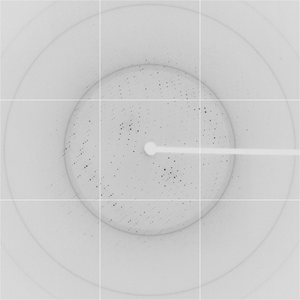

Dataset 24776_4_E2_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

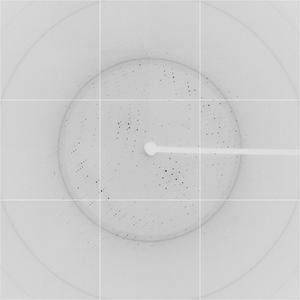

Dataset 24776_5_###.img details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
65.0 |
| Wavelength [Å] |
0.97904 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
