Diffraction project datasets PC07755A_2obn

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 1 21 1
Download all images (2.9 GB)

PDB website for 2OBN
PDB validation report for 2OBN

doi:10.18430/M32OBN

Project details

Title Crystal structure of a duf1611 family protein (ava_3511) from anabaena variabilis atcc 29413 at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 75.09 x 123.07 x 75.21
Unit cell angles [°] 90.0, 103.1, 90.0

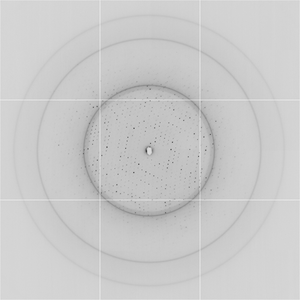

Dataset 29753_1_E1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 176.0
Wavelength [Å] 0.98060
Experiment Date 2006-10-08
Equipment 5.0.3 at ALS (Advanced Light Source)

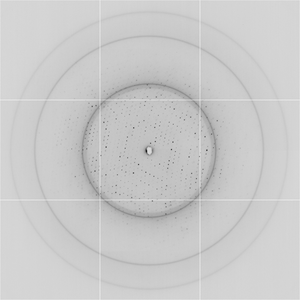

Dataset 29753_1_E2_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 176.0
Wavelength [Å] 1.00000
Experiment Date 2006-10-08
Equipment 5.0.3 at ALS (Advanced Light Source)

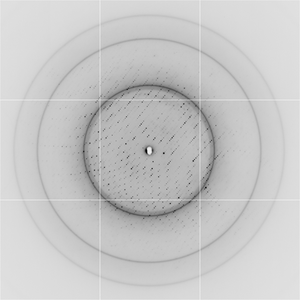

Dataset 29753_2_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 127.0
Wavelength [Å] 0.98050
Experiment Date 2006-10-08
Equipment 5.0.3 at ALS (Advanced Light Source)
