Diffraction project datasets PC07317D_2gjg

  • Method: MAD
  • Resolution: 2.25 Å
  • Space group: C 1 2 1
Download all images (6.5 GB)

PDB website for 2GJG
PDB validation report for 2GJG

doi:10.18430/M32GJG

Project details

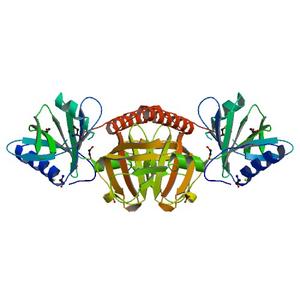

Title CRYSTAL STRUCTURE OF A PILZ-CONTAINING PROTEIN (PP4397) FROM PSEUDOMONAS PUTIDA KT2440 AT 2.25 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.28
Unit cell edges [Å] 89.22 x 48.82 x 57.48
Unit cell angles [°] 90.0, 93.4, 90.0

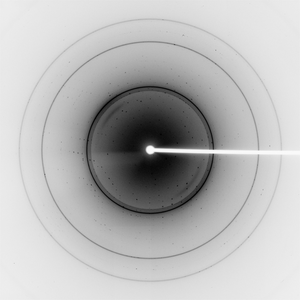

Dataset 22317_1_E1_###.mccd details

Number of frames 151 (1 - 151)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 332.0
Wavelength [Å] 0.97941
Experiment Date 2006-02-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

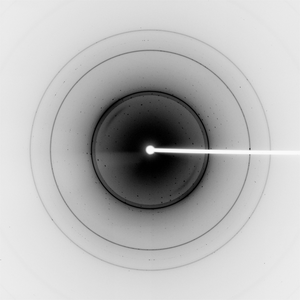

Dataset 22317_1_E2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 332.0
Wavelength [Å] 0.91162
Experiment Date 2006-02-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

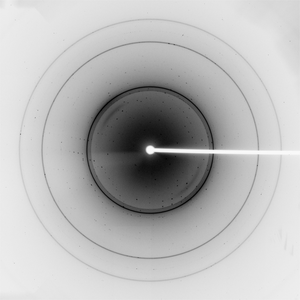

Dataset 22317_2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 332.0
Wavelength [Å] 0.97879
Experiment Date 2006-02-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
