Diffraction project datasets PC06475C_2h1t
- Method: MAD
- Resolution: 1.8 Å
- Space group: C 1 2 1
PDB website for 2H1T
PDB validation report for 2H1T
doi:10.18430/M32H1T
Project details

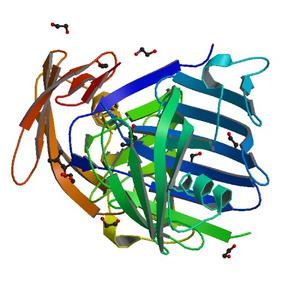

| Title | Crystal structure of a duf1089 family protein (pa1994) from pseudomonas aeruginosa at 1.80 A resolution |
| Authors | Bakolitsa, C., Kumar, A., McMullan, D., Krishna, S.S., Miller, M.D., Carlton, D., Najmanovich, R., Abdubek, P., Astakhova, T., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Elias, Y., Feuerhelm, J., Grant, J.C., Grzechnik, S.K., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Marciano, D., Morse, A.T., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Reyes, R., Rife, C.L., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 130.03 x 41.90 x 78.65 |
| Unit cell angles [°] | 90.0, 91.2, 90.0 |

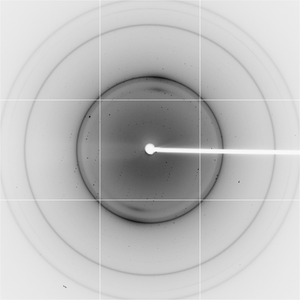

Dataset 24118_1_E1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 7.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

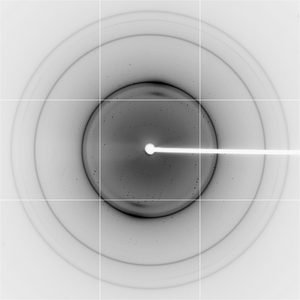

Dataset 24118_1_E2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 7.0 |
| Wavelength [Å] | 0.91162 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 24118_2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 7.0 |
| Wavelength [Å] | 0.97894 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
