Diffraction project datasets PC06249B_2pyt
Project details
| Title |

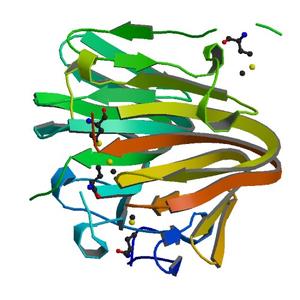

Crystal structure of a putative ethanolamine utilization protein q (eutq, stm2468) from salmonella typhimurium lt2 at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
38.15 x
39.04 x
44.92
|
| Unit cell angles [°] |
110.0,
104.8,
95.4
|

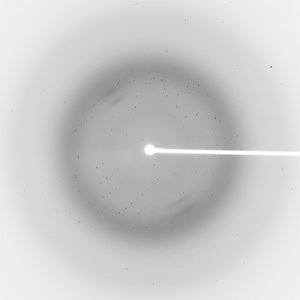

Dataset 48017_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
89.0 |
| Wavelength [Å] |
0.97929 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

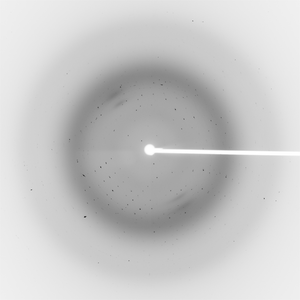

Dataset 48017_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
89.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 48017_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
89.0 |
| Wavelength [Å] |
0.97901 |
| Experiment Date |
2007-05-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
