Diffraction project datasets PC05995D_2gm6

  • Resolution: 1.84 Å
  • Space group: P 41 21 2
Download all images (3.9 GB)

PDB website for 2GM6
PDB validation report for 2GM6

doi:10.18430/M32GM6

Project details

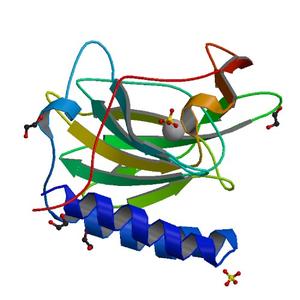

Title CRYSTAL STRUCTURE OF A PUTATIVE CYSTEINE DIOXYGENASE TYPE I (REUT_B5045) FROM RALSTONIA EUTROPHA JMP134 AT 1.84 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 57.17 x 57.17 x 216.79
Unit cell angles [°] 90.0, 90.0, 90.0

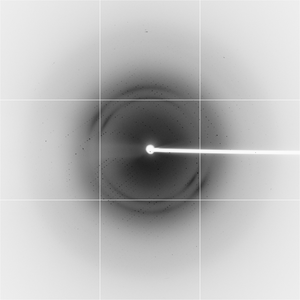

Dataset 22369_1_E1_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 240.0
Oscillation width [°] 2.00
Phi [°] 232.0
Wavelength [Å] 0.97926
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

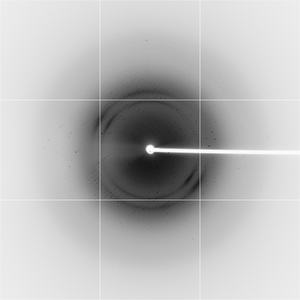

Dataset 22369_1_E2_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 240.0
Oscillation width [°] 2.00
Phi [°] 232.0
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

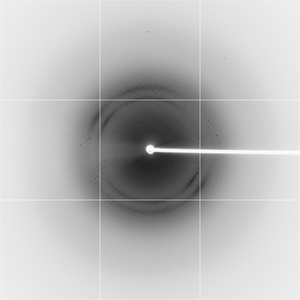

Dataset 22369_2_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 240.0
Oscillation width [°] 2.00
Phi [°] 232.0
Wavelength [Å] 0.97904
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
