Diffraction project datasets PC05163A_2hkv
Project details
| Title |

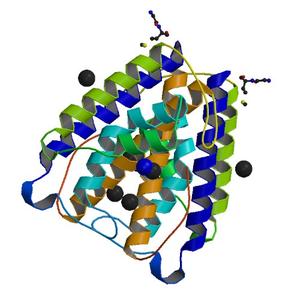

CRYSTAL STRUCTURE OF A PUTATIVE MEMBER OF THE DINB FAMILY (EXIG_1237) FROM EXIGUOBACTERIUM SIBIRICUM 255-15 AT 1.70 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.18 / 0.23 |
| Unit cell edges [Å] |
45.02 x
45.02 x
131.18
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

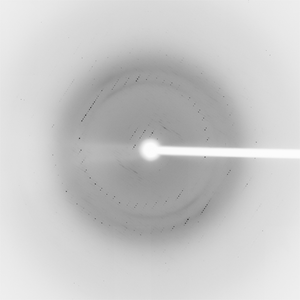

Dataset 26230_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
49.0 |
| Wavelength [Å] |
0.97934 |
| Experiment Date |
2006-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

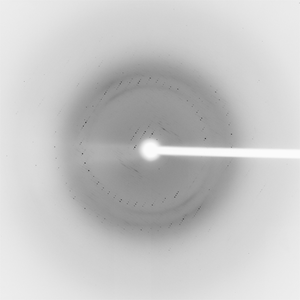

Dataset 26230_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
49.0 |
| Wavelength [Å] |
0.92522 |
| Experiment Date |
2006-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

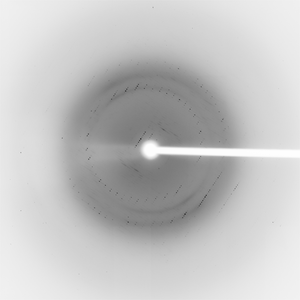

Dataset 26230_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
49.0 |
| Wavelength [Å] |
1.03317 |
| Experiment Date |
2006-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

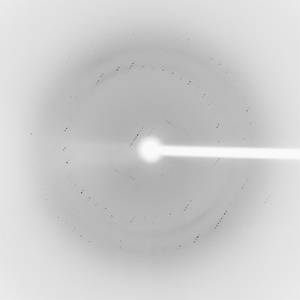

Dataset 26230_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
380.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
49.0 |
| Wavelength [Å] |
1.03317 |
| Experiment Date |
2006-06-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
