Diffraction project datasets PC04261E_2iiz

  • Method: Molecular Replacement
  • Resolution: 2.3 Å
  • Space group: P 43 21 2
Download all images (4.0 GB)

PDB website for 2IIZ

doi:10.18430/M32IIZ

Project details

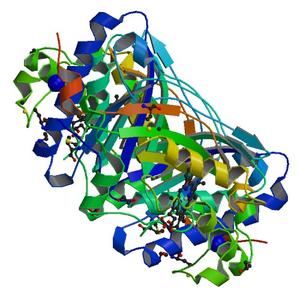

Title Crystal structure of putative melanin biosynthesis protein TyrA with bound heme (NP_716371.1) from Shewanella Oneidensis at 2.30 A resolution
Authors Zubieta, C., Joseph, R., Krishna, S.S., McMullan, D., Kapoor, M., Axelrod, H.L., Miller, M.D., Abdubek, P., Acosta, C., Astakhova, T., Carlton, D., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Elias, Y., Elsliger, M.A., Feuerhelm, J., Grzechnik, S.K., Hale, J., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Kumar, A., Marciano, D., Morse, A.T., Murphy, K.D., Nigoghossian, E., Okach, L., Oommachen, S., Reyes, R., Rife, C.L., Schimmel, P., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Xu, Q., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A.
R / Rfree 0.21 / 0.27
Unit cell edges [Å] 94.84 x 94.84 x 116.67
Unit cell angles [°] 90.0, 90.0, 90.0

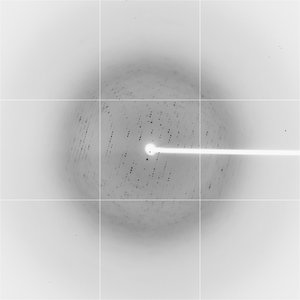

Dataset tyra_heme10_4_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 211.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

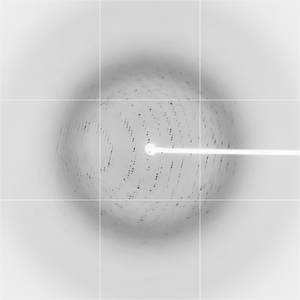

Dataset tyra_heme5_1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 200.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

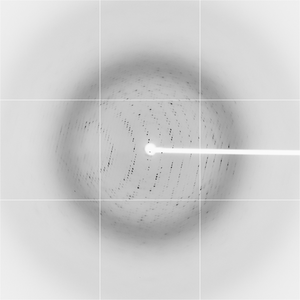

Dataset tyra_heme5_anneal_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 200.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

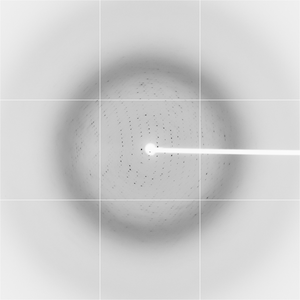

Dataset tyra_heme9_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 158.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
