Diffraction project datasets PC04016A_3l5o
- Method: SAD
- Resolution: 2.01 Å
- Space group: P 61
PDB website for 3L5O
PDB validation report for 3L5O
doi:10.18430/M33L5O
Project details
| Title | Crystal structure of protein with unknown function from DUF364 family (ZP_00559375.1) from Desulfitobacterium hafniense DCB-2 at 2.01 A resolution |
| Authors | Miller, M.D., Aravind, L., Bakolitsa, C., Rife, C.L., Carlton, D., Abdubek, P., Astakhova, T., Axelrod, H.L., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Feuerhelm, J., Grant, J.C., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Marciano, D., McMullan, D., Morse, A.T., Nigoghossian, E., Okach, L., Reyes, R., van den Bedem, H., Weekes, D., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 120.64 x 120.64 x 75.20 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

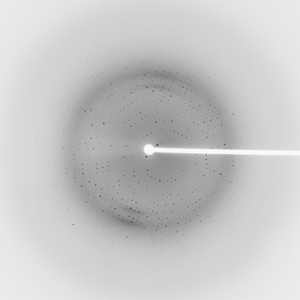

Dataset 24438_1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 108.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2006-04-29 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

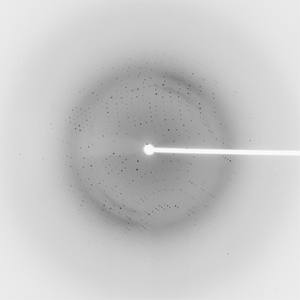

Dataset 24438_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 153.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2006-04-29 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

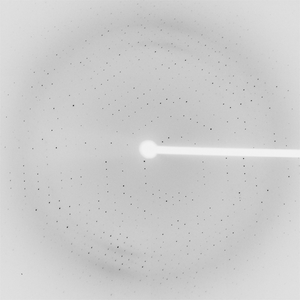

Dataset 24438_3_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 108.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2006-04-29 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
