Diffraction project datasets PC02663D_2gvi
- Method: MAD, Molecular Replacement
- Resolution: 1.87 Å
- Space group: I 2 2 2
PDB website for 2GVI
doi:10.18430/M32GVI
Project details

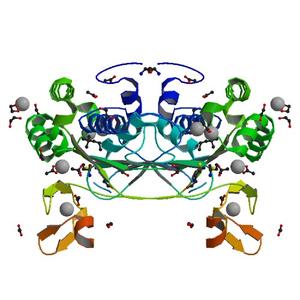

| Title | Crystal structure of a putative formylmethanofuran dehydrogenase subunit e (ta1109) from thermoplasma acidophilum at 1.87 A resolution |
| Authors | Axelrod, H.L., Das, D., Abdubek, P., Astakhova, T., Bakolitsa, C., Carlton, D., Chen, C., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Ellrott, K., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Lam, W.W., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Wooten, T., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 78.68 x 97.65 x 75.27 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

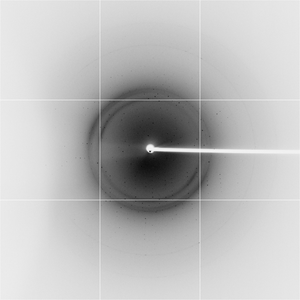

Dataset 22871_1_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 65.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
