Diffraction project datasets PC02663C_2glz

  • Method: MAD
  • Resolution: 1.45 Å
  • Space group: P 21 21 21
Download all images (14.8 GB)

PDB website for 2GLZ
PDB validation report for 2GLZ

doi:10.18430/M32GLZ

Project details

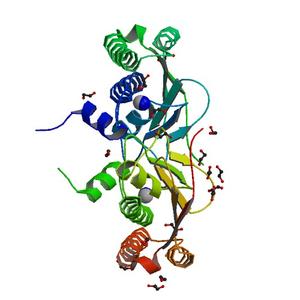

Title Crystal structure of a formylmethanofuran dehydrogenase subunit e-like protein (dhaf_2992) from desulfitobacterium hafniense dcb-2 at 1.45 A resolution
Authors Axelrod, H.L., Das, D., Abdubek, P., Astakhova, T., Bakolitsa, C., Carlton, D., Chen, C., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Ellrott, K., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Lam, W.W., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Wooten, T., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A.
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 46.42 x 84.79 x 100.71
Unit cell angles [°] 90.0, 90.0, 90.0

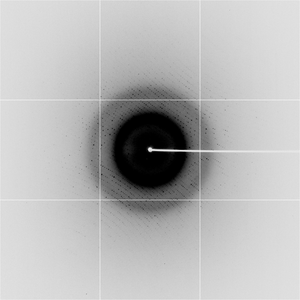

Dataset 22359_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 120.0
Oscillation width [°] 1.00
Phi [°] 333.0
Wavelength [Å] 0.97929
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

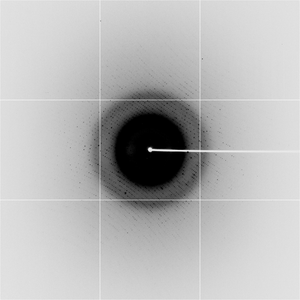

Dataset 22359_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 120.0
Oscillation width [°] 1.00
Phi [°] 333.0
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

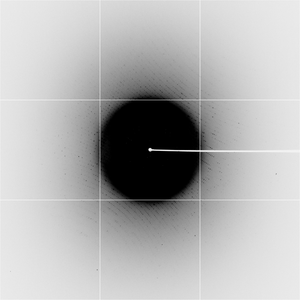

Dataset 22359_2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 100.0
Oscillation width [°] 1.00
Phi [°] 333.0
Wavelength [Å] 0.97901
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

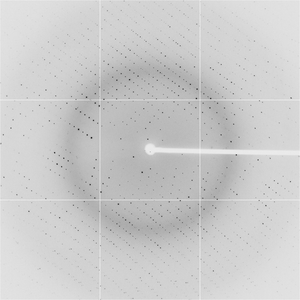

Dataset 22359_3_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 300.0
Oscillation width [°] 2.00
Phi [°] 333.0
Wavelength [Å] 0.97901
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
