Diffraction project datasets PC02625B_3on5
- Method: MAD + Molecular Replacement
- Resolution: 2.8 Å
- Space group: P 43 21 2
PDB website for 3ON5
PDB validation report for 3ON5
doi:10.18430/M33ON5
Project details

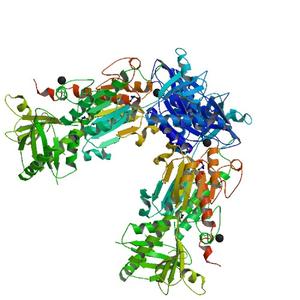

| Title | Crystal structure of a xanthine dehydrogenase (BH1974) from Bacillus halodurans at 2.80 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.22 |
| Unit cell edges [Å] | 94.24 x 94.24 x 245.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

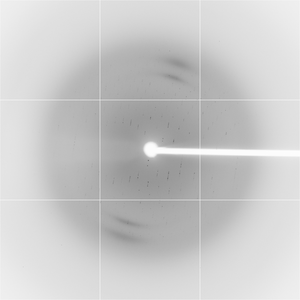

Dataset 26201_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 63.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

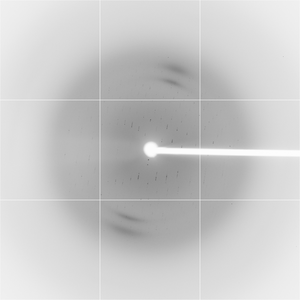

Dataset 26201_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 63.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
