Diffraction project datasets PC01796D_3irb
- Method: MAD
- Resolution: 1.8 Å
- Space group: P 41 2 2
PDB website for 3IRB
doi:10.18430/M33IRB
Project details

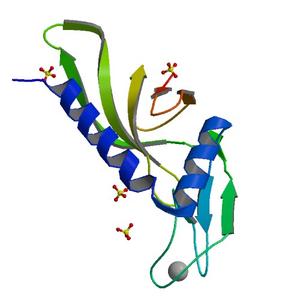

| Title | Crystal structure of protein with unknown function from DUF35 family (13815350) from SULFOLOBUS SOLFATARICUS at 1.80 A resolution |
| Authors | Krishna, S.S., Aravind, L., Bakolitsa, C., Caruthers, J., Carlton, D., Miller, M.D., Abdubek, P., Astakhova, T., Axelrod, H.L., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Feuerhelm, J., Grant, J.C., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kumar, A., Marciano, D., McMullan, D., Morse, A.T., Nigoghossian, E., Okach, L., Reyes, R., Rife, C.L., van den Bedem, H., Weekes, D., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 75.17 x 75.17 x 115.40 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

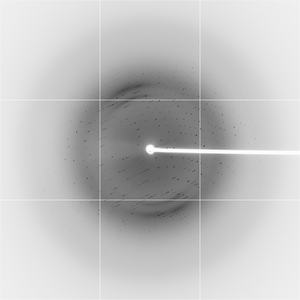

Dataset 22755_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 310.0 |
| Wavelength [Å] | 0.97939 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

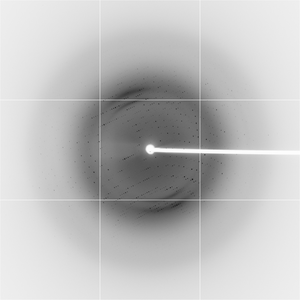

Dataset 22755_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 310.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

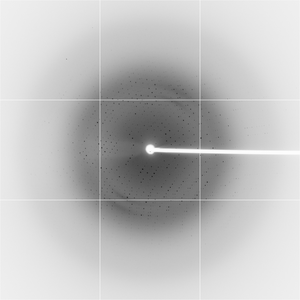

Dataset 22755_2_###.img details
| Number of frames | 82 (1 - 82) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97917 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
