Diffraction project datasets PC00329C_3mcr

  • Method: MR
  • Resolution: 2.65 Å
  • Space group: P 43 21 2
Download all images (3.9 GB)

PDB website for 3MCR
PDB validation report for 3MCR

doi:10.18430/M33MCR

Project details

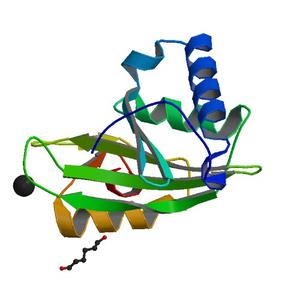

Title Crystal structure of NADH dehydrogenase subunit C (Tfu_2693) from THERMOBIFIDA FUSCA YX-ER1 at 2.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 69.26 x 69.26 x 114.21
Unit cell angles [°] 90.0, 90.0, 90.0

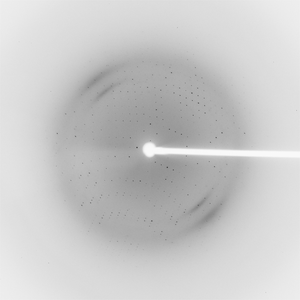

Dataset 83131_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97922
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

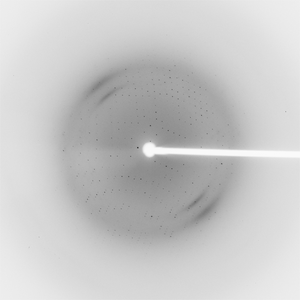

Dataset 83131_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.91837
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 83131_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97870
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
