Diffraction project datasets NafoA_18681_a_B2_6nab
- Resolution: 2.0 Å
- Space group: C 1 2 1
PDB website for 6NAB
PDB validation report for 6NAB
doi:10.18430/m36nab
Project details

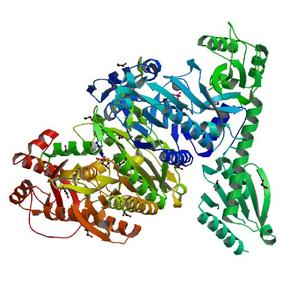

| Title | Crystal structure of prolyl-tRNA synthetase from Naegleria fowleri in complex with proline and adenosine monophophsphate (AMP) |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 156.93 x 66.10 x 112.98 |
| Unit cell angles [°] | 90.0, 102.0, 90.0 |

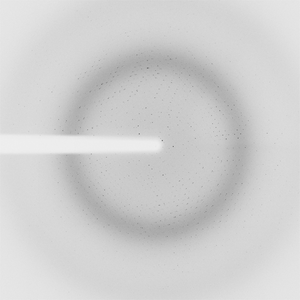

Dataset xfd3-8.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 295.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-07-14 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
