Diffraction project datasets NP_813429.1_2okc

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 21
Download all images (3.7 GB)

PDB website for 2OKC
PDB validation report for 2OKC

doi:10.18430/M32OKC

Project details

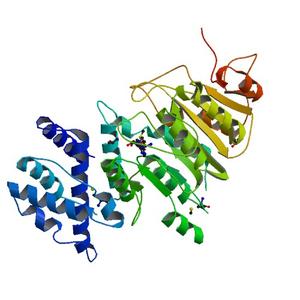

Title Crystal structure of Type I restriction enzyme StySJI M protein (NP_813429.1) from Bacteroides thetaiotaomicron VPI-5482 at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 75.44 x 85.85 x 152.81
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 37523_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 21.0
Wavelength [Å] 0.97935
Experiment Date 2006-12-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

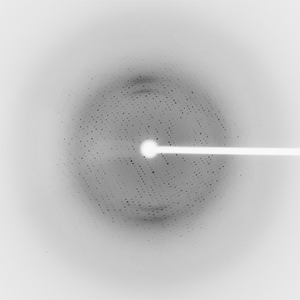

Dataset 37523_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 21.0
Wavelength [Å] 0.91837
Experiment Date 2006-12-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

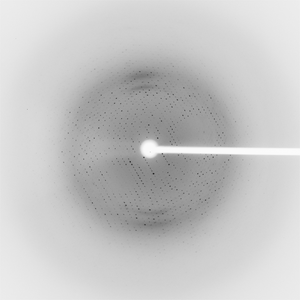

Dataset 37523_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 21.0
Wavelength [Å] 0.97899
Experiment Date 2006-12-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
