Diffraction project datasets NP_813211.1_1zyb
- Method: MAD
- Resolution: 2.15 Å
- Space group: P 65 2 2
PDB website for 1ZYB
PDB validation report for 1ZYB
doi:10.18430/M31ZYB
Project details
| Title | Crystal structure of transcription regulator from Bacteroides thetaiotaomicron VPI-5482 at 2.15 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 115.98 x 115.98 x 119.64 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

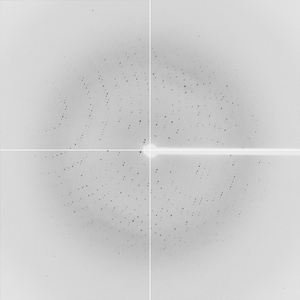

Dataset 15797_1_E1_###.img details
| Number of frames | 123 (1 - 123) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.97909 |
| Equipment | BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory) |

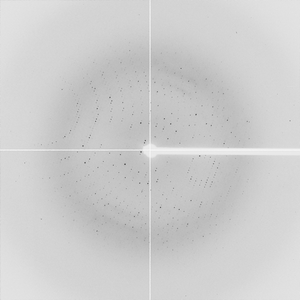

Dataset 15797_1_E2_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.91838 |
| Equipment | BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory) |
