Diffraction project datasets NP_812058.1_2a2m
- Method: SAD
- Resolution: 1.88 Å
- Space group: F 4 3 2
PDB website for 2A2M
PDB validation report for 2A2M
doi:10.18430/M32A2M
Project details

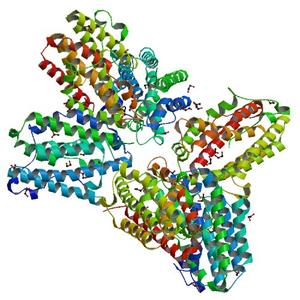

| Title | CRYSTAL STRUCTURE OF a putativeTenA family transcriptional regulator (BT_3146) FROM BACTEROIDES THETAIOTAOMICRON VPI-5482 AT 1.88 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 283.29 x 283.29 x 283.29 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

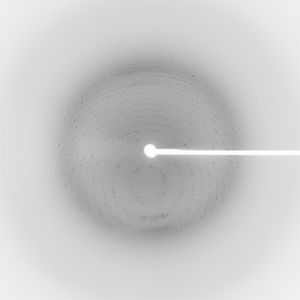

Dataset 16472_1_###.mccd details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2005-06-06 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
