Diffraction project datasets NP_811426.1_3cuc

  • Method: MAD
  • Resolution: 2.71 Å
  • Space group: P 31 2 1
Download all images (3.4 GB)

PDB website for 3CUC
PDB validation report for 3CUC

doi:10.18430/M33CUC

Project details

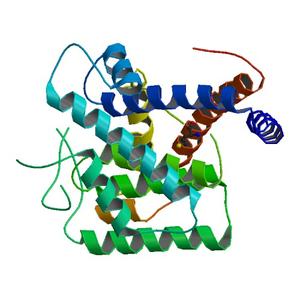

Title CRYSTAL STRUCTURE OF A FIC DOMAIN CONTAINING SIGNALING PROTEIN (BT_2513) FROM BACTEROIDES THETAIOTAOMICRON VPI-5482 AT 2.71 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.25
Unit cell edges [Å] 138.73 x 138.73 x 120.72
Unit cell angles [°] 90.0, 90.0, 120.0

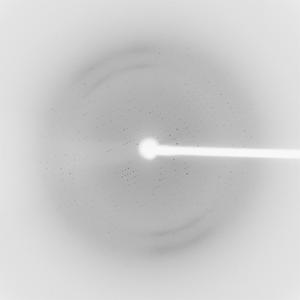

Dataset 79794_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97954
Experiment Date 2008-03-05
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

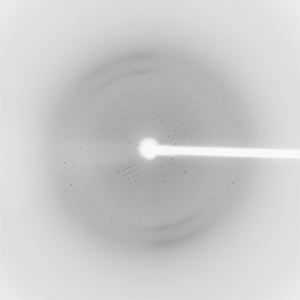

Dataset 79794_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.91837
Experiment Date 2008-03-05
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

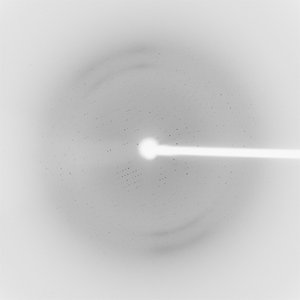

Dataset 79794_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97882
Experiment Date 2008-03-05
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
