Diffraction project datasets NP_811092.1_2huh
Project details
| Title |

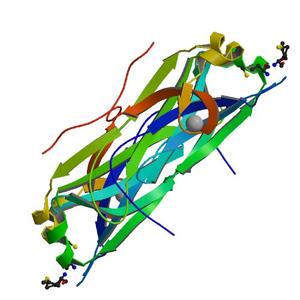

Crystal structure of a duf2027 family protein (bt_2179) from bacteroides thetaiotaomicron at 1.54 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.19 |
| Unit cell edges [Å] |
43.04 x
43.04 x
167.29
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

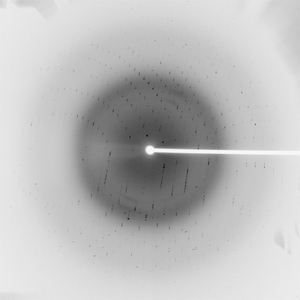

Dataset 27726_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
42.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2006-07-02 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

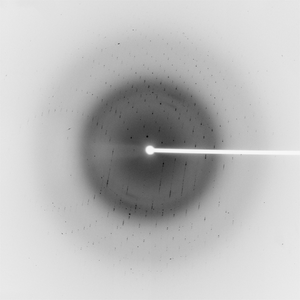

Dataset 27726_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
42.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-07-02 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

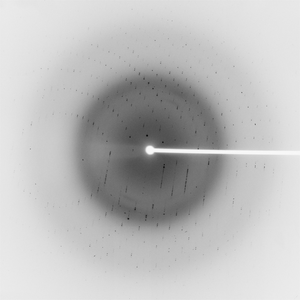

Dataset 27726_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
42.0 |
| Wavelength [Å] |
0.97905 |
| Experiment Date |
2006-07-02 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

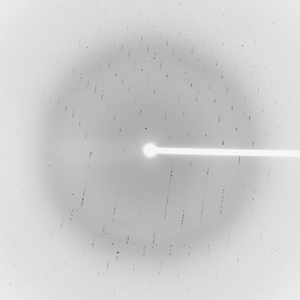

Dataset 27726_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
42.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-07-02 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
