Diffraction project datasets NP_645455.1_2aj6

  • Method: MAD
  • Resolution: 1.63 Å
  • Space group: I 2 2 2
Download all images (3.3 GB)

PDB website for 2AJ6
PDB validation report for 2AJ6

doi:10.18430/M32AJ6

Project details

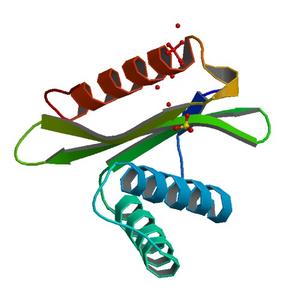

Title Crystal structure of a putative gnat family acetyltransferase (mw0638) from staphylococcus aureus subsp. aureus at 1.63 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 40.06 x 74.86 x 90.72
Unit cell angles [°] 90.0, 90.0, 90.0

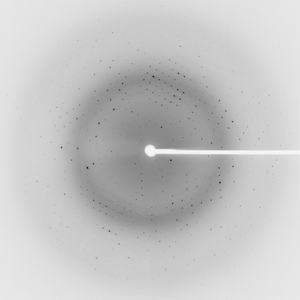

Dataset 16430_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 1.0
Wavelength [Å] 0.97934
Experiment Date 2005-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

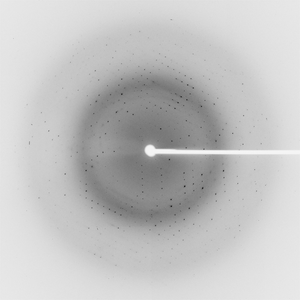

Dataset 16430_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 1.0
Wavelength [Å] 0.91162
Experiment Date 2005-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

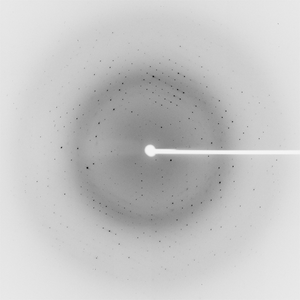

Dataset 16430_1_E3_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 1.0
Wavelength [Å] 0.97922
Experiment Date 2005-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
