Diffraction project datasets NP_241664.1_1vpm
Project details
| Title |

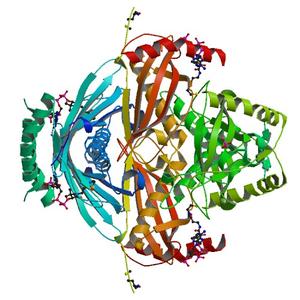

Crystal structure of Acyl-CoA hydrolase (NP_241664.1) from Bacillus halodurans at 1.66 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.20 |
| Unit cell edges [Å] |
82.98 x
106.51 x
120.25
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

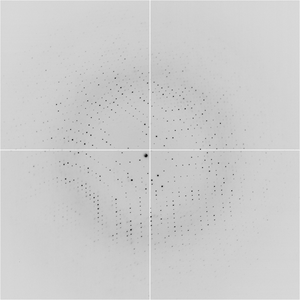

Dataset T3681_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
302.0 |
| Wavelength [Å] |
0.97965 |
| Experiment Date |
2004-10-09 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

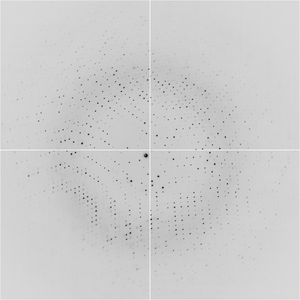

Dataset T3681_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
302.0 |
| Wavelength [Å] |
1.01994 |
| Experiment Date |
2004-10-09 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

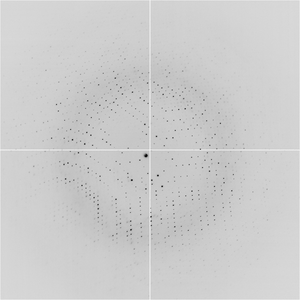

Dataset T3681_1_E3_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
302.0 |
| Wavelength [Å] |
0.97976 |
| Experiment Date |
2004-10-09 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

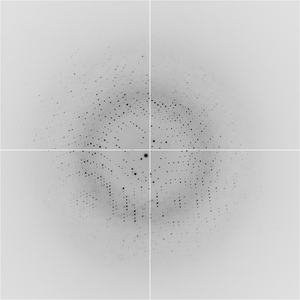

Dataset T3681_2_###.img details
| Number of frames |
450 (1 - 450) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
302.0 |
| Wavelength [Å] |
0.97965 |
| Experiment Date |
2004-10-09 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|
