Diffraction project datasets NP417381_1vlo

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 21 21 21
Download all images (4.3 GB)

PDB website for 1VLO
PDB validation report for 1VLO

doi:10.18430/M31VLO

Project details

Title Crystal structure of aminomethyltransferase (T protein; tetrahydrofolate-dependent) of glycine cleavage system (np417381) from Escherichia coli k12 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 46.52 x 64.56 x 117.14
Unit cell angles [°] 90.0, 90.0, 90.0

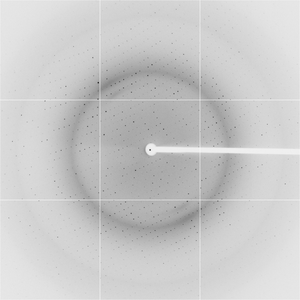

Dataset 11274_1_E1_###.img details

Number of frames 95 (1 - 95)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.97949
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

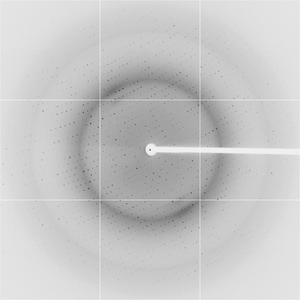

Dataset 11274_1_E2_###.img details

Number of frames 95 (1 - 95)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.88557
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

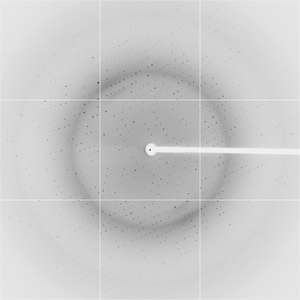

Dataset 11274_2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.97905
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
