Diffraction project datasets NP416953_1vmi
Project details
| Title |

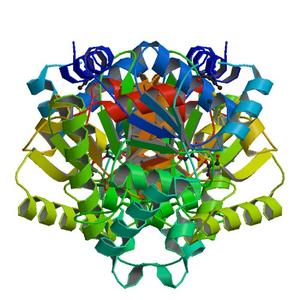

Crystal structure of Putative phosphate acetyltransferase (np_416953.1) from Escherichia coli k12 at 2.32 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.25 |
| Unit cell edges [Å] |
95.31 x
95.31 x
175.51
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

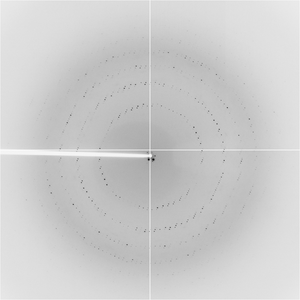

Dataset 11039_1_###.img details
| Number of frames |
91 (1 - 91) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

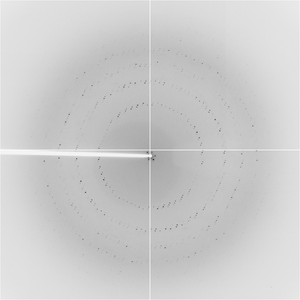

Dataset 11039_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

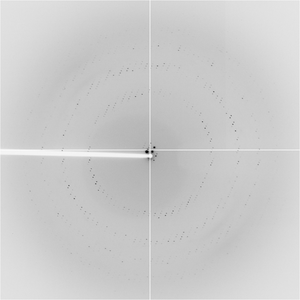

Dataset 11039_4_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
47.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
